Superior Structural Rigidity
The spindle head sits as close as possible to the centre of the column, reducing overhang and bending moments. Structural deformation is minimized while cutting stability and machining accuracy are maximized.

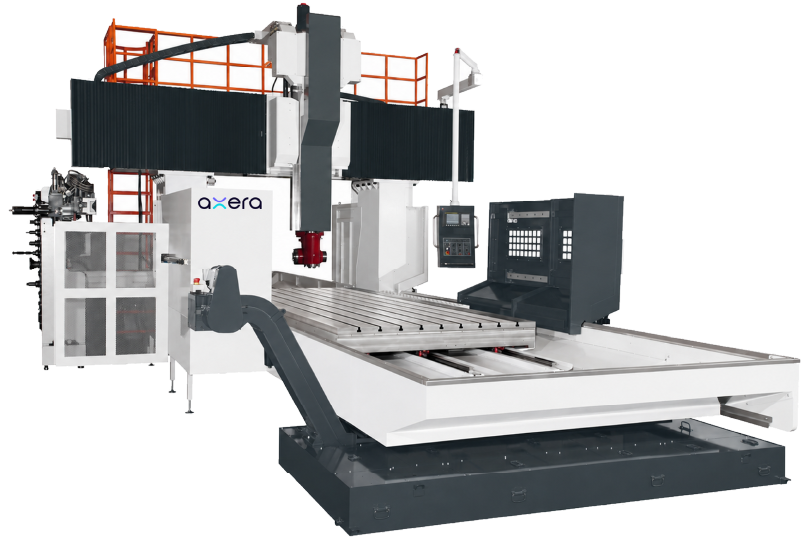

Double-Column Moving-Table Machining Center
FG
Series
High-speed rigidity for large precision components, moulds and dies.
Book a machine demo
MOVING-TABLE DOUBLE COLUMN MACHINING CENTER
Precision engineered for
heavy-duty machining.
Designed and manufactured entirely in-house, the FG Series combines more than three decades of engineering expertise with advanced manufacturing technologies. Every major structural component is optimized using finite element analysis (FEA) for exceptional rigidity, long-term accuracy and outstanding machining performance.
For large precision components, moulds and dies, and heavy industrial parts, FG delivers the stability, power and reliability required for demanding machining applications.
ENGINEERING DEEP DIVE
Engineered from
the ground up.
Integrated Structural Design
High-performance machine tools begin with superior structural design. Every FG Series machine is developed with a comprehensive understanding of machine dynamics, structural rigidity, thermal stability and manufacturing efficiency. This integrated philosophy ensures optimum cutting performance, superior surface finish and long-term machining accuracy throughout the machine's service life.
Optimized Double Column Structure
Heavy-Duty Z-Axis Box Guideway
The precision hand-scraped, one-piece box guideway minimizes vibration while maintaining stable accuracy under heavy cutting loads.
- Exceptional structural rigidity and damping.
- Long-term wear resistance and service life.
- Outstanding heavy-cutting capability.
High-Precision Class C3 Ballscrews
Premium Class C3 ballscrews are installed on all three linear axes and pre-tensioned for consistent machining precision.
- Outstanding positioning accuracy and repeatability.
- Reduced thermal deformation.
- Long-term positioning stability.
Optimized Structural Components
The base, table, saddle, beam and columns use high-grade Meehanite cast iron for vibration damping, rigidity, wear resistance and long-term dimensional stability.
Critical members are reinforced with high-strength steel plates and stress-relieved after welding to maximize structural integrity and machining performance.
TECHNICAL SPECIFICATIONS
FG DOUBLE COLUMN
Series.
Compare FG configurations by table width, travel and spindle architecture. L denotes built-in spindle; LG denotes gear-head spindle.
FG 1500 SERIES
| Spec. | Unit | FG-2215L/LG | FG-2715L/LG | FG-3215L/LG | FG-4215L/LG |
|---|---|---|---|---|---|
| TABLE | |||||
| Table dimension | mm | 2000 × 1200 | 2500 × 1200 | 3200 × 1200 | 4200 × 1200 |
| T-slot (no. × width × pitch) | 9 × 22mm × 200mm | 9 × 22mm × 200mm | 9 × 22mm × 200mm | 9 × 22mm × 200mm | |
| Max. table load | kg | 4000 | 5000 | 6000 | 8000 |
| TRAVEL | |||||
| X-axis | mm | 2200 | 2700 | 3200 | 4200 |
| Y-axis | mm | 1500 | 1500 | 1500 | 1500 |
| Z-axis | mm | 760 | 760 | 760 | 760 |
| SPINDLE | |||||
| Spindle speed (L Series) | rpm | Built-in BT40: 12,000/15,000; BT50: 8,000/10,000 | Built-in BT40: 12,000/15,000; BT50: 8,000/10,000 | Built-in BT40: 12,000/15,000; BT50: 8,000/10,000 | Built-in BT40: 12,000/15,000; BT50: 8,000/10,000 |
| Spindle speed (LG Series) | rpm | Two-step gear: 10–6,000 std. / 10–4,500 opt. | Two-step gear: 10–6,000 std. / 10–4,500 opt. | Two-step gear: 10–6,000 std. / 10–4,500 opt. | Two-step gear: 10–6,000 std. / 10–4,500 opt. |
| Max. spindle torque (L Series) | Nm | aB112L: 167 (S3 15%) | aB112L: 167 (S3 15%) | aB112L: 167 (S3 15%) | aB112L: 167 (S3 15%) |
| Max. spindle torque (LG Series) | Nm | 6,000rpm: 769 (S3 25%) / 4,500rpm opt. | 6,000rpm: 769 (S3 25%) / 4,500rpm opt. | 6,000rpm: 769 (S3 25%) / 4,500rpm opt. | 6,000rpm: 769 (S3 25%) / 4,500rpm opt. |
FG 2000 SERIES
| Spec. | Unit | FG-2220L/LG | FG-2720L/LG | FG-3220L/LG | FG-4220L/LG |
|---|---|---|---|---|---|
| TABLE | |||||
| Table dimension | mm | 2000 × 1600 | 2500 × 1600 | 3000 × 1600 | 4000 × 1600 |
| T-slot (no. × width × pitch) | 7 × 22mm × 200mm | 7 × 22mm × 200mm | 7 × 22mm × 200mm | 7 × 22mm × 200mm | |
| Max. table load | kg | 8000 | 9000 | 10000 | 12000 |
| TRAVEL | |||||
| X-axis | mm | 2200 | 2700 | 3200 | 4200 |
| Y-axis | mm | 2000 | 2000 | 2000 | 2000 |
| Z-axis | mm | 1000 | 1000 | 1000 | 1000 |
| SPINDLE | |||||
| Spindle speed (L Series) | rpm | Built-in BT40: 12,000/15,000; BT50: 8,000/10,000 | Built-in BT40: 12,000/15,000; BT50: 8,000/10,000 | Built-in BT40: 12,000/15,000; BT50: 8,000/10,000 | Built-in BT40: 12,000/15,000; BT50: 8,000/10,000 |
| Spindle speed (LG Series) | rpm | Two-step gear: 10–6,000 std. / 10–4,500 opt. | Two-step gear: 10–6,000 std. / 10–4,500 opt. | Two-step gear: 10–6,000 std. / 10–4,500 opt. | Two-step gear: 10–6,000 std. / 10–4,500 opt. |
| Max. spindle torque (L Series) | Nm | aB112L: 167 (S3 15%) | aB112L: 167 (S3 15%) | aB112L: 167 (S3 15%) | aB160LL: 420 (S3 25%) |
| Max. spindle torque (LG Series) | Nm | 6,000rpm: 769 (S3 25%) / 4,500rpm opt. | 6,000rpm: 769 (S3 25%) / 4,500rpm opt. | 6,000rpm: 769 (S3 25%) / 4,500rpm opt. | 6,000rpm: 769 (S3 25%) / 4,500rpm opt. |
FG 2500 SERIES
| Spec. | Unit | FG-3225L/LG | FG-4225L/LG | FG-5225L/LG | FG-6225L/LG |
|---|---|---|---|---|---|
| TABLE | |||||
| Table dimension | mm | 3000 × 2000 | 4000 × 2000 | 5000 × 2000 | 6000 × 2000 |
| T-slot (no. × width × pitch) | 9 × 22mm × 200mm | 9 × 22mm × 200mm | 9 × 22mm × 200mm | 9 × 22mm × 200mm | |
| Max. table load | kg | 12000 | 15000 | 18000 | 20000 |
| TRAVEL | |||||
| X-axis | mm | 3200 | 4200 | 5200 | 6200 |
| Y-axis | mm | 2500 | 2500 | 2500 | 2500 |
| Z-axis | mm | 1000 | 1000 | 1000 | 1000 |
| SPINDLE | |||||
| Spindle speed (L Series) | rpm | Built-in BT40: 12,000/15,000; BT50: 8,000/10,000 | Built-in BT40: 12,000/15,000; BT50: 8,000/10,000 | Built-in BT40: 12,000/15,000; BT50: 8,000/10,000 | Built-in BT40: 12,000/15,000; BT50: 8,000/10,000 |
| Spindle speed (LG Series) | rpm | Two-step gear: 10–6,000 std. / 10–4,500 opt. | Two-step gear: 10–6,000 std. / 10–4,500 opt. | Two-step gear: 10–6,000 std. / 10–4,500 opt. | Two-step gear: 10–6,000 std. / 10–4,500 opt. |
| Max. spindle torque (L Series) | Nm | aB112L: 167 / aB160LL: 420 | aB112L: 167 / aB160LL: 420 | aB112L: 167 / aB160LL: 420 | aB112L: 167 / aB160LL: 420 |
| Max. spindle torque (LG Series) | Nm | 6,000rpm: 769 / 4,500rpm opt.: 1026 | 6,000rpm: 769 / 4,500rpm opt.: 1026 | 6,000rpm: 769 / 4,500rpm opt.: 1026 | 6,000rpm: 769 / 4,500rpm opt.: 1026 |
FG 3000 SERIES
| Spec. | Unit | FG-4230L/LG | FG-5230L/LG | FG-6230L/LG |
|---|---|---|---|---|
| TABLE | ||||
| Table dimension | mm | 4000 × 2500 | 5000 × 2500 | 6000 × 2500 |
| T-slot (no. × width × pitch) | 9 × 28mm × 250mm + 2 × 28mm × 150mm | 9 × 28mm × 250mm + 2 × 28mm × 150mm | 9 × 28mm × 250mm + 2 × 28mm × 150mm | |
| Max. table load | kg | 18000 | 22000 | 25000 |
| TRAVEL | ||||
| X-axis | mm | 4200 | 5200 | 6200 |
| Y-axis | mm | 3000 | 3000 | 3000 |
| Z-axis | mm | 1000 | 1000 | 1000 |
| SPINDLE | ||||
| Spindle speed (L Series) | rpm | Built-in BT50: 8,000/10,000 | Built-in BT50: 8,000/10,000 | Built-in BT50: 8,000/10,000 |
| Spindle speed (LG Series) | rpm | Two-step gear: 10–6,000 std. / 10–4,500 opt. | Two-step gear: 10–6,000 std. / 10–4,500 opt. | Two-step gear: 10–6,000 std. / 10–4,500 opt. |
| Max. spindle torque (L Series) | Nm | aB112L: 167 / aB160LL: 420 | aB112L: 167 / aB160LL: 420 | aB112L: 167 / aB160LL: 420 |
| Max. spindle torque (LG Series) | Nm | 6,000rpm: 769 / 4,500rpm opt.: 1026 | 6,000rpm: 769 / 4,500rpm opt.: 1026 | 6,000rpm: 769 / 4,500rpm opt.: 1026 |
