Closed-Loop Positioning
X/Y/Z linear-scale feedback supports precise positioning across the working envelope.

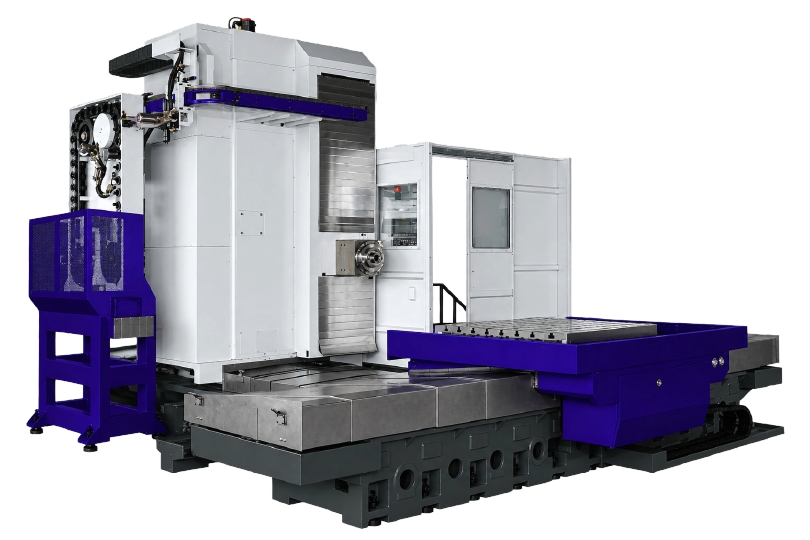

Horizontal boring & milling center
HBM
Series
Rigid, high-torque machining for large and demanding workpieces.
Book a machine demo
HORIZONTAL BORING & MILLING CENTER
Heavy-duty capability,
intelligently engineered.
The AXERA HBM Series is engineered to maximise productivity in the machining of large and demanding workpieces. A rigid machine structure, high-torque spindle technology and optimised thermal stability deliver exceptional cutting performance, long-term accuracy and reliable operation under continuous heavy-duty machining.
Multiple spindle configurations and an optional CNC precision facing head enable complex processes in a single setup, helping manufacturers improve throughput while reducing overall manufacturing costs.
ENGINEERING DEEP DIVE
Built for the
heaviest work.
Rigid Machine Foundation
Meehanite-licensed, stress-relieved cast structures and roller-type linear guideways create a stable, high-load platform for large-part horizontal boring and milling.
KEY BENEFITS
- High rigidity and vibration damping for continuous heavy-duty machining.
- Roller-type guideways designed for high load capacity.
- C3-class preloaded double-nut ball screws for stable axis motion.
Long-Travel Support
Ball-screw support is provided for travels of 3 metres and above to preserve process stability.
Hardened Spindle & Quill
The spindle and quill sleeve are hardened to a reference HRC 52–55 for long-term durability.
Spindle, Quill & Rotary Table
The T-Type platform offers 110 mm, 130 mm and 150 mm spindle-quill diameters, ISO 50 tooling, two-speed gearbox strategies and high-load rotary tables.
KEY BENEFITS
- Two-speed gearbox combines low-speed torque with versatile general machining.
- CNC rotary table with 0.001° indexing reference and encoder feedback.
- Extended 150 mm quill available for larger-process requirements.
High-Torque ISO 50 Spindle
The ISO 50 spindle interface and two-speed gearbox support powerful cutting and reliable general machining.
Extended Quill Platform
HBM-5TU and HBM-5TLU incorporate the extended 150 mm quill concept with 900 mm W-axis travel.
Rotary Accuracy Reference
Positioning accuracy: 15 arcsec; repeatability: 4 arcsec; encoder accuracy: ±5 arcsec.
Single-Setup Process Capability
Arm-type automatic tool changers, optional accessory heads and servo facing-head configurations expand the process range while minimising workpiece transfers and re-clamping.
Tool Management
ATC capacity ranges from 40 / 60 tools on HBM-3T to 60 / 120 tools across larger configurations.
Precision Facing Head
The optional CNC precision facing head provides 200 mm radial traverse, a 1,250 mm maximum working diameter and Ra 1.6 μm surface-roughness reference.
UT5 Servo Facing Head
The HBM-5T platform supports UT5-500 / UT5-630 servo facing heads for one-clamping milling, tapping, drilling and facing operations. Its U-axis radial slide enables outer and inner facing, cylindrical and conical boring, threading and radius machining.
KEY BENEFITS
- Completes multiple facing and boring operations in a single clamping.
- U-axis radial slide expands machining capability for complex large parts.
- Designed to support accurate finishing and productive heavy-duty processing.
Working Range
- Radial traverse: 200 mm
- Maximum working diameter: 1,250 mm
- Feed rate: 1–400 mm/min
Accuracy Reference
- Repeatability: 0.005 mm
- Boring accuracy: H7
- Facing accuracy: 0.02 mm
- Surface roughness: Ra 1.6 μm
TECHNICAL SPECIFICATIONS
HORIZONTAL BORING & MILLING
Series.
Compare spindle-quill configurations, working range, table capacity and tool management across the HBM lineup.
| Spec. | Unit | HBM-3T | HBM-4T | HBM-5T | HBM-5TL | HBM-5TU | HBM-5TLU |
|---|---|---|---|---|---|---|---|
| SPINDLE & QUILL | |||||||
| Quill diameter | mm | Ø110 | Ø130 | Ø130 / Ø150 | Ø130 / Ø150 | Ø150 | Ø150 |
| W-axis travel | mm | 550 | 700 | 700 / 900 | 700 / 900 | 900 | 900 |
| Spindle speed | rpm | 35–3,000 | 35–3,000 | 35–3,000 / 35–2,000 | 35–3,000 / 35–2,000 | 35–2,000 | 35–2,000 |
| WORKING RANGE & TABLE CAPACITY | |||||||
| X-axis travel | mm | 2,000 std. / 3,000 opt. | 2,000 std. / 3,000 opt. | 3,500 std. / 4,500 / 5,500 opt. | 3,500 std. / 4,500 / 5,500 opt. | 3,500 std. / 4,500 / 5,500 opt. | 3,500 std. / 4,500 / 5,500 opt. |
| Y-axis travel | mm | 2,000 | 2,000 | 2,600 std. / 3,200 opt. | 3,200 std. / 2,600 opt. | 2,600 std. / 3,200 opt. | 2,600 std. / 3,200 opt. |
| Z-axis travel | mm | 1,400 std. / 1,700 opt. | 1,400 | 1,400 std. / 2,000 opt. | 2,000 std. / 1,400 opt. | 1,400 std. / 2,000 opt. | 1,400 std. / 2,000 opt. |
| Table size | mm | 1,400 × 1,600 std. / 1,600 × 1,800 opt. | 1,400 × 1,600 std. / 1,600 × 1,800 opt. | 1,800 × 2,200 | 2,500 × 2,500 | 1,800 × 2,200 | 2,500 × 2,500 |
| Maximum table load | kg | 8,000 std. / 10,000 opt. | 8,000 std. / 10,000 opt. | 15,000 std. / 20,000 opt. | 20,000 | 15,000 std. / 20,000 opt. | 20,000 |
| FEED & TOOL MANAGEMENT & FACING CAPABILITY | |||||||
| Rapid traverse X / Y / Z / W | m/min | 10 / 10 / 10 / 6 | 10 / 10 / 10 / 8 | 10 / 10 / 10 / 8 | 10 / 10 / 10 / 8 | 10 / 10 / 10 / 8 | 10 / 10 / 10 / 8 |
| ATC capacity | tools | 40 / 60 | 60 / 120 | 60 / 120 | 60 / 120 | 60 / 120 | 60 / 120 |
| Tool shank | BT / CAT / DIN 50 | BT / CAT / DIN 50 | BT / CAT / DIN 50 | BT / CAT / DIN 50 | BT / BBT / CAT / DIN 50 | BT / BBT / CAT / DIN 50 | |
NOTES & OPTIONS
- The HBM-5TU and HBM-5TLU use the extended 150 mm quill concept. The HBM-5TLU is equipped with the UT5 servo facing head as standard.
- Rotary table reference: positioning accuracy 15 arcsec; repeatability 4 arcsec; encoder accuracy ±5 arcsec. Final acceptance criteria are governed by the applicable machine specification and technical agreement.
- Arm-type automatic tool changer.
- Maximum standard tool diameter Ø125 mm; up to Ø245–250 mm with an adjacent pocket empty, depending on model.
- Maximum tool length: 500 mm standard; 700 mm option on selected configurations.
- Maximum individual tool weight: 25 kg.
- Optional angle milling head, universal milling head and spindle extension sleeve.
